Aramid Conveyor Belt
Factory: Goldway Conveyor Belt
Views : 135
Category：
Keyword：
Flap
E-MAIL:admin@sdaolonggroup.com
Inquire NowProduct Details
Usage
Combined with high strength,lightweight materials and multifunction cover materials,the
Aramid conveyor belt are suitable for various application areas.
Characteristics
Low energy consumption
The structure of straight warp and straight weft consists of aramid cords in warp and nylon cord in weft in both sides which will protect the belt.The lightweight aramid conveyor belt can reduce the power consumption of the conveyor.It will save more energy by using energy-saving rubber with low rolling resistance as the pulley side.
Impact resistance
As the toughness of aramid fabric can protect the conveyor belt from being punctured by sharp conveying materials.It can also reduce the damage of the conveyor belt even if in high drop distance.
High heat resistance and flame resistance
High heat resistance property will protect the conveyor belt from being damaged by conveying materials with high temperature.Even the burning substance is not easy to penetrate the aramid core
Anti-corrosion
Aramid,as the man-made fabric itself is superior resistant to media.Otherwise,it has excellent properties in chemical resistance and corrosion resistance.
Optimized belt design for a long lifetime
As there’s single fabric ply only,the carcass is light and flexible with optimum strength utilization.Aramid conveyor belts are excellent in fatigue resistance throughout their lifetime.Top and bottom cover meet high demands on wear and impact resistance,which provides the optimum protection for the valuable aramid.

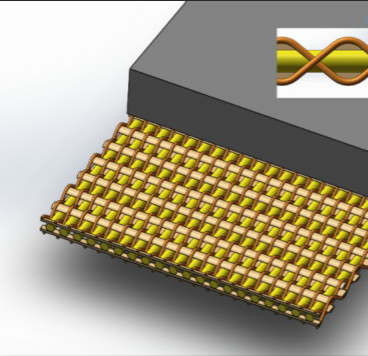

Structure

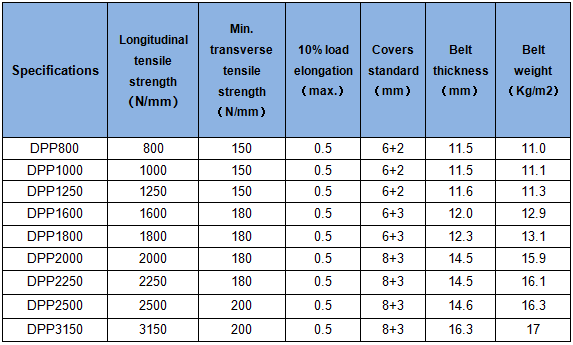

Standard Specifications
Note: It can be customized according to customers’ requirements.

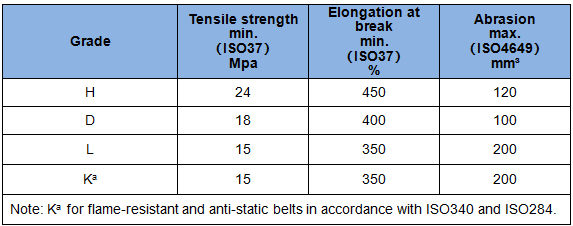

Cover Grade
In accordance with ISO15236-2016 standard
The values will help to determine the appropriate cover compound for the application or for the materials carries.Reliable assessment of the behavior of the covers in service for wear and cut resistance cannot be determined from tensile strength,and abrasion values alone.
•Production capability:Registered capital of 86 million usd,and total assets of 154 million usd,covering an area of 468,000m2,we have about 1,500 employees,wherein 306 are technical personnel holding medium and senior professional titles.And the annual output of tire,inner tube,flap 6000,000 pieces,conveyor belt is 1500,000 m2,.New equipment is upgrading and increasing every year.
•Sales capability:Over 235 million usd annually
•Testing capability:Our technical labs have always been upgrading for testing the raw materials,production process and finished product.
•Present exporting market:America,Canada,Italy,UK,Brazil,Peru,South Africa,Mid-east,Russia,etc.
