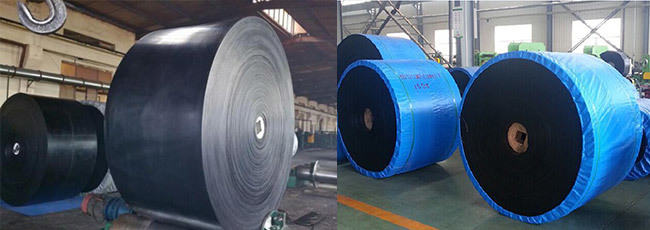

Chemical/ Acid/ Alkaline Resistant Resistant Conveyor Belt
Factory: Goldway Conveyor Belt
Views : 439
Category：
Keyword：
Flap
E-MAIL:admin@sdaolonggroup.com
Inquire NowProduct Details
Features:
Good elasticity,easy to through,low elongation.The rubber covers which made of chemical resistant materials have excellent anti-chemical corrosiveness and good physical properties.
Application：
Suitable for conveying corrosive materials in chemical factories,cement plant,fertilizer plants,paper mills,mining industry,etc.
Class
Solution
Concentration
Covered Condition
The Change Rate Before And After Covered
Volume Expansivity
Strength Change Rate
A1
(HCI)
18%
50℃x96h
≥10%
≤10%
A2
(H2SO4)
50%
50℃x96h
≥10%
≤10%
A3
(NaOH)
48%
50℃x96h
＞10%
＜10%
|
ITEM |
Breaking Strength(Mpa) |
Elongation At Break(%) |
Abrasion(mm3) |
Hardness(Shore) |
|
Performance before aging |
≥14.0 |
≥400 |
≤250 |
60±5 |
|
Performance after aging |
≥12.0 |
≥350 |
- |
60±5 |
|
Note: When the thickness of the cover rubber is 0.8mm-1.6mm,the sample thickness can be the maximum cut length,the tensile strength and elongation at break are allowed to be 15% lower than those in the table |
||||
Chemical Resistant Conveyor Belt Specification We can Produce:
|
Belt Type |
Fabric Ply |
Carcass |
Min. Ply Strength |
# of Plies |
CoverGauge(mm) |
Belt Width |
Grade |
|
|
|
|
|
(N/mm) |
|
Top Cover |
Bottom Cover |
|
|
|
EP Belts |
EP100 |
1 |
100 |
2-8 |
1.5-30 |
0-20 |
300-2200 |
15MPA |
|
EP125 |
1 |
120 |
||||||
|
EP150 |
1.1 |
150 |
||||||
|
EP200 |
1.2 |
200 |
||||||
|
EP250 |
1.3 |
250 |
||||||
|
EP300 |
1.4 |
300 |
||||||
|
EP350 |
1.5 |
350 |
||||||
|
EP400 |
1.6 |
400 |
||||||
|
EP500 |
1.7 |
500 |
||||||
|
EP600 |
1.8 |
600 |
||||||
|
NN Belts |
NN100 |
1 |
100 |
2-10 |
1.5-30 |
0-20 |
300-2200 |
|
|
NN125 |
1 |
125 |
||||||
|
NN150 |
1.1 |
150 |
||||||
|
NN200 |
1.2 |
200 |
||||||
|
NN250 |
1.4 |
250 |
||||||
|
NN300 |
1.6 |
300 |
||||||
|
NN400 |
1.7 |
400 |
||||||
|
NN500 |
1.9 |
500 |
||||||
|
NN600 |
2.1 |
600 |
||||||
|
CC Belts |
CC56 |
1.1 |
56 |
3--12 |
1.5-30 |
0-20 |
300-2200 |
|
Recommend Minimum Pulley Diameter:
|
Driver Pulley /Diameter/ |
# Of Plies |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
|
EP Belts |
EP100 |
200 |
250 |
315 |
400 |
500 |
630 |
800 |
|
|
|
|
|
EP125 |
200 |
250 |
315 |
400 |
500 |
630 |
800 |
|
|
|
|
|
|
EP150 |
250 |
400 |
500 |
630 |
800 |
1000 |
1250 |
|
|
|
|
|
|
EP200 |
315 |
500 |
630 |
800 |
1000 |
1250 |
1400 |
|
|
|
|
|
|
EP250 |
400 |
630 |
800 |
1000 |
1250 |
1400 |
1400 |
|
|
|
|
|
|
EP300 |
500 |
800 |
1000 |
1000 |
1250 |
1400 |
1600 |
|
|
|
|
|
|
EP400 |
630 |
800 |
1250 |
1250 |
1400 |
1600 |
|
|
|
|
|
|
|
EP500 |
800 |
1000 |
1250 |
1400 |
1600 |
|
|
|
|
|
|
|
|
EP600 |
1000 |
1250 |
1400 |
1600 |
1800 |
|
|
|
|
|
|
|
|
NN Belts |
NN100 |
200 |
250 |
315 |
400 |
500 |
630 |
800 |
1000 |
1250 |
|
|
|
NN125 |
200 |
250 |
315 |
400 |
500 |
630 |
800 |
1000 |
1250 |
|
|
|
|
NN150 |
200 |
250 |
315 |
400 |
500 |
630 |
800 |
1000 |
1250 |
|
|
|
|
NN200 |
250 |
400 |
500 |
630 |
800 |
1000 |
1250 |
1250 |
1400 |
|
|
|
|
NN250 |
315 |
500 |
630 |
800 |
1000 |
1250 |
1400 |
1250 |
1400 |
|
|
|
|
NN300 |
400 |
630 |
800 |
1000 |
1250 |
1400 |
1400 |
1400 |
1600 |
|
|
|
|
NN400 |
500 |
800 |
1000 |
1000 |
1250 |
1400 |
1600 |
1600 |
1800 |
|
|
|
|
NN500 |
630 |
800 |
1250 |
1250 |
1400 |
1600 |
1800 |
|
|
|
|
|
|
NN600 |
800 |
1000 |
1250 |
|
1600 |
1800 |
2000 |
|
|
|
|
|
|
|
CC56 |
/ |
400 |
500 |
600 |
800 |
1000 |
1250 |
1250 |
1400 |
1600 |
1600 |
•Production capability:Registered capital of 86 million usd,and total assets of 154 million usd,covering an area of 468,000m2,we have about 1,500 employees,wherein 306 are technical personnel holding medium and senior professional titles.And the annual output of tire,inner tube,flap 6000,000 pieces,conveyor belt is 1500,000 m2,.New equipment is upgrading and increasing every year.
•Sales capability:Over 235 million usd annually
•Testing capability:Our technical labs have always been upgrading for testing the raw materials,production process and finished product.
•Present exporting market:America,Canada,Italy,UK,Brazil,Peru,South Africa,Mid-east,Russia,etc.
